Auteur de la section : Danielle J. Navarro and David R. Foxcroft

The paired-samples t-test

Regardless of whether we are talking about the Student test or the Welch test, an independent samples t-test is intended to be used in a situation where you have two samples that are, well, independent of one another. This situation arises naturally when participants are assigned randomly to one of two experimental conditions, but it provides a very poor approximation to other sorts of research designs. In particular, a repeated measures design, in which each participant is measured (with respect to the same outcome variable) in both experimental conditions, is not suited for analysis using independent samples t-tests. For example, we might be interested in whether listening to music reduces people’s working memory capacity. To that end, we could measure each person’s working memory capacity in two conditions: with music, and without music. In an experimental design such as this one,[1] each participant appears in both groups. This requires us to approach the problem in a different way, by using the paired samples t-test.

The data

The data set that we will use this time comes from Dr Chico’s class.[2] In her class students take two major tests, one early in the semester and one later in the semester. To hear her tell it, she runs a very hard class, one that most students find very challenging. But she argues that by setting hard assessments students are encouraged to work harder. Her theory is that the first test is a bit of a “wake up call” for students. When they realise how hard her class really is, they will work harder for the second test and get a better mark. Is she right? To test this, let us import the chico data set into jamovi. This time jamovi does a good job during the import of attributing measurement levels correctly. The chico data set contains three variables: an id variable that identifies each student in the class, the grade_test1 variable that records the student grade for the first test, and the grade_test2 variable that has the grades for the second test.

If we look at the jamovi spreadsheet it does seem like the class is a hard one (most grades are between 50% and 60%), but it does look like there is an improvement from the first test to the second one.

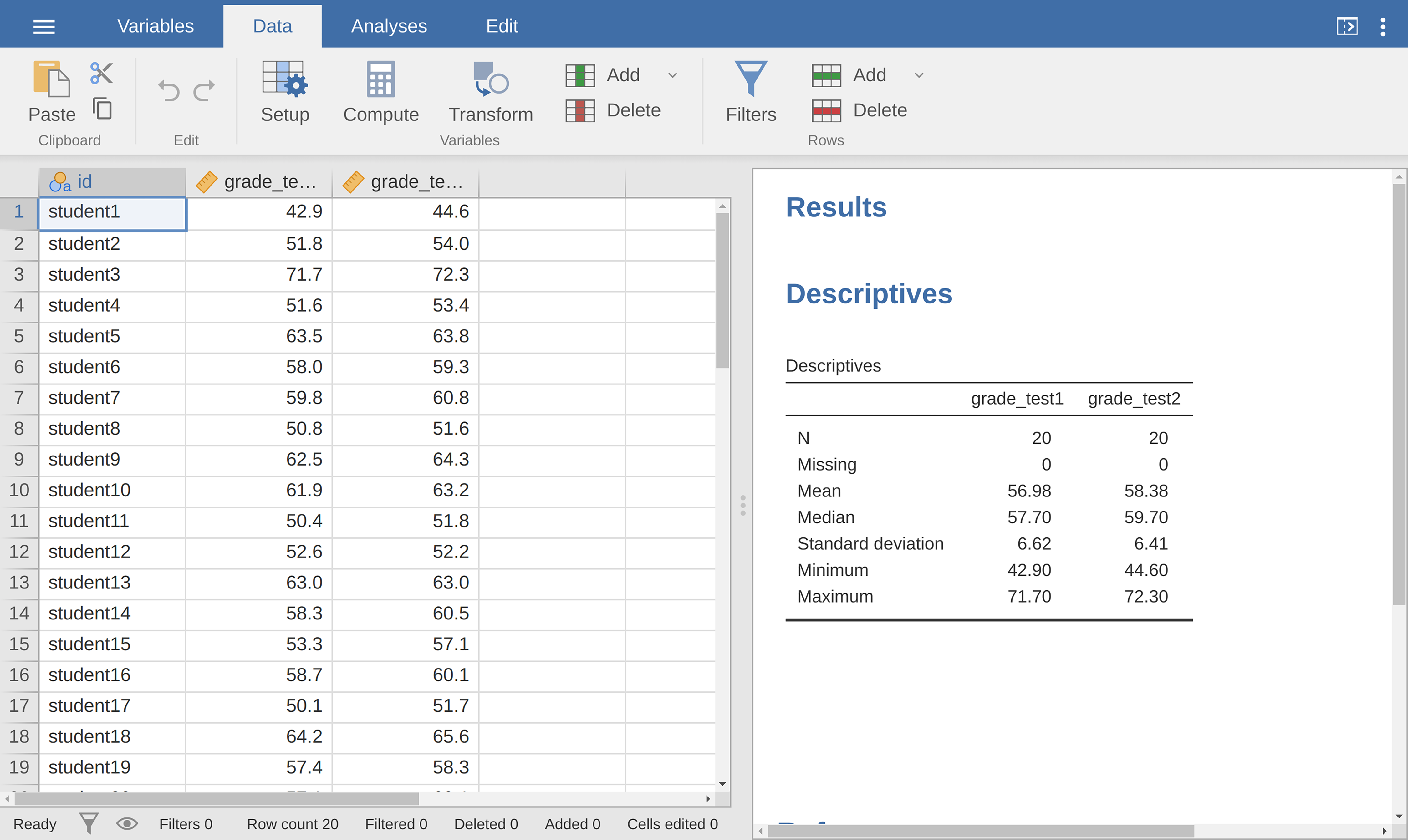

Fig. 108 Descriptives for the two grade test variables in the chico data set

If we take a quick look at the descriptive statistics, in Fig. 108, we see that this impression seems to be supported. Across all 20 students the mean grade for the first test is 57%, but this rises to 58% for the second test. Although, given that the standard deviations are 6.6% and 6.4% respectively, it is starting to feel like maybe the improvement is just illusory; maybe just random variation. This impression is reinforced when you see the means and confidence intervals plotted in Fig. 109 (left panel). If we were to rely on this plot alone, looking at how wide those confidence intervals are, we would be tempted to think that the apparent improvement in student performance is pure chance.

Fig. 109 Mean grade for test 1 and test 2, with associated 95% confidence intervals (left panel). Scatterplot showing the individual grades for test 1 and test 2 (right panel).

Nevertheless, this impression is wrong. To see why, take a look at the scatterplot of the grades for test 1 against the grades for test 2, shown in Fig. 109 (right panel). In this plot each dot corresponds to the two grades for a given student. If their grade for test 1 (x co-ordinate) equals their grade for test 2 (y co-ordinate), then the dot falls on the line. Points falling above the line are the students that performed better on the second test. Critically, almost all of the data points fall above the diagonal line: almost all of the students do seem to have improved their grade, if only by a small amount. This suggests that we should be looking at the improvement made by each student from one test to the next and treating that as our raw data. To do this, we will need to create a new variable for the improvement that each student makes, and add it to the chico data set. The easiest way to do this is to compute a new variable, with the expression grade_test2 - grade_test1.

Once we have computed this new improvement variable we can draw a histogram showing the distribution of these improvement scores, shown in Fig. 110. When we look at the histogram, it is very clear that there is a real improvement here. The vast majority of the students scored higher on test 2 than on test 1, reflected in the fact that almost the entire histogram is above zero.

Fig. 110 Histogram from jamovi showing the improvement made by each student in Dr Chico’s class. Notice that almost the entire distribution is above zero – the vast majority of students did improve their performance from the first test to the second one.

What is the paired samples t-test?

In light of the previous exploration, let us think about how to construct an appropriate t-test. One possibility would be to try to run an independent samples t-test using grade_test1 and grade_test2 as the variables of interest. However, this is clearly the wrong thing to do as the independent samples t-test assumes that there is no particular relationship between the two samples. Yet clearly that is not true in this case because of the repeated measures structure in the data. To use the language that I introduced in the last section, if we were to try to do an independent samples t-test, we would be conflating the within subject differences (which is what we are interested in testing) with the between subject variability (which we are not).

The solution to the problem is obvious, I hope, since we already did all the hard work in the previous section. Instead of running an independent samples t-test on grade_test1 and grade_test2, we run a one-sample t-test on the within-subject difference variable, improvement. To formalise this slightly, if X_i1 is the score that the i-th participant obtained on the first variable, and X_i2 is the score that the same person obtained on the second one, then the difference score is:

D_i = X_i1 - X_i2}

Notice that the difference scores is variable 1 minus variable 2 and not the other way around, so if we want improvement to correspond to a positive valued difference, we actually want “test 2” to be our “variable 1”. Equally, we would say that µ_D = µ₁ - µ₂ is the population mean for this difference variable. So, to convert this to a hypothesis test, our null hypothesis is that this mean difference is zero and the alternative hypothesis is that it is not:

H₀: µ_D = 0

H₂: µ_D ≠ 0

This is assuming we are talking about a two-sided test here. This is more or less identical to the way we described the hypotheses for the one-sample t-test. The only difference is that the specific value that the null hypothesis predicts is 0. And so our t-statistic is defined in more or less the same way too. If we let D̄ denote the mean of the difference scores, then:

\[t = \frac{\bar{D}}{SE(\bar{D})}\]

which is:

\[t = \frac{\bar{D}}{\hat\sigma_D / \sqrt{N}}\]

where \(\hat\sigma_D\) is the standard deviation of the difference scores. Since this is just an ordinary, one-sample t-test, with nothing special about it, the degrees of freedom are still N - 1. And that is it. The paired samples t-test really is not a new test at all. It is a one-sample t-test, but applied to the difference between two variables. It is actually very simple. The only reason it merits a discussion as long as the one we have just gone through is that you need to be able to recognise when a paired samples test is appropriate, and to understand why it is better than an independent samples t-test.

Doing the test in jamovi

How do you do a paired samples t-test in jamovi? One possibility is to follow the process I outlined above. That is, create a difference variable and then run a one sample t-test on that. Since we have already created a variable called improvement, let us do that and see what we get (see Fig. 111).

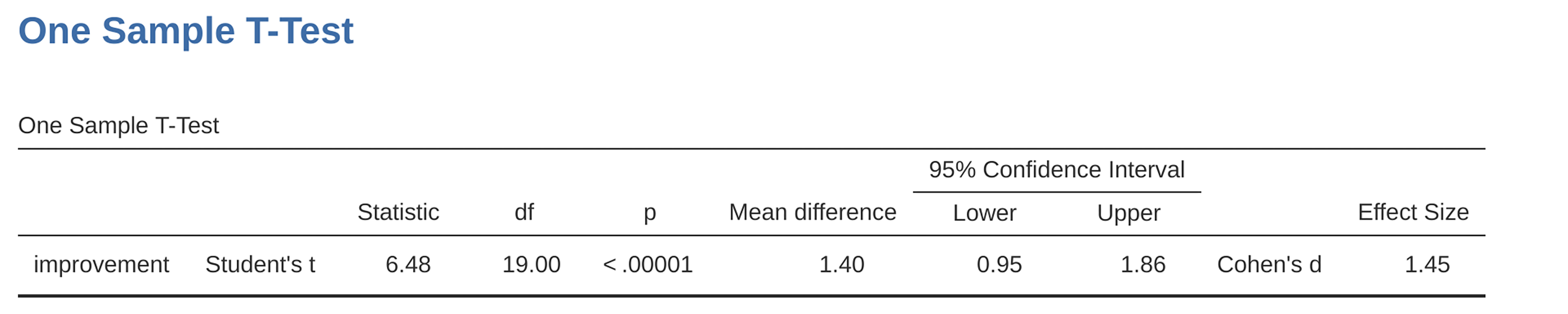

Fig. 111 Results showing a one sample t-test on paired difference scores

The output shown in Fig. 111 is (obviously) formatted exactly the same was as it was the last time we used the One Sample T-Test analysis (section The one-sample t-test), and it confirms our intuition. There is an average improvement of 1.4% from test 1 to test 2, and this is significantly different from 0 (t(19) = 6.48, p < 0.001).

However, suppose you are lazy and you do not want to go to all the effort of creating a new variable. Or perhaps you just want to keep the difference between one-sample and paired-samples tests clear in your head. If so, you can use the jamovi Paired Samples T-Test analysis, getting the results shown in Fig. 112.

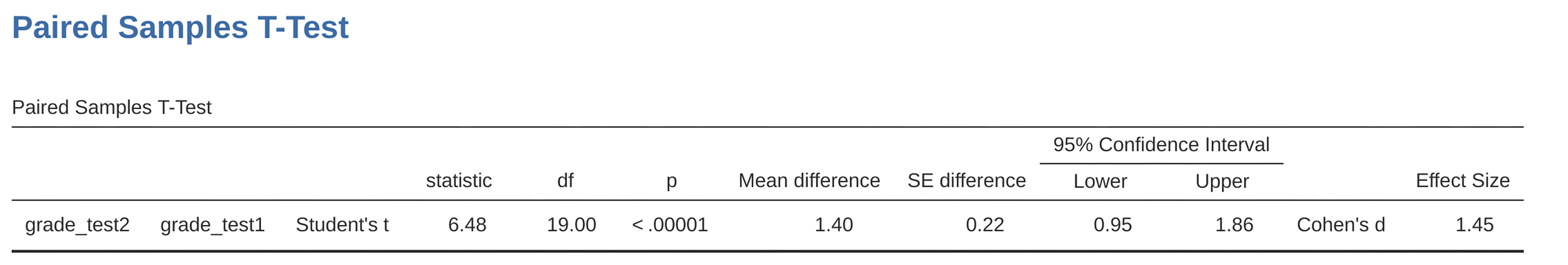

Fig. 112 Results showing a paired sample t-test. Compare it with Fig. 111.

The numbers are identical to those that come from the one sample test, which of course they have to be given that the paired samples t-test is just a one sample test under the hood.

---

[1]

This design is very similar to the one in section The McNemar test that motivated the McNemar test. This should be no surprise. Both are standard repeated measures designs involving two measurements. The only difference is that this time our outcome variable is interval scale (working memory capacity, ) rather than a binary scale variable (a yes-or-no question, ).

[2]

At this point we have Drs Harpo, Chico and Zeppo. No prizes for guessing who Dr Groucho is.
